Compression fittings

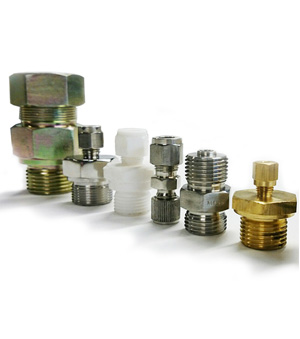

Gland couplings - a.k.a compression fittings - are used with sensing inserts or sensors without wells. The immersion depth of sensing insert can be adjusted, when installing on a thread. Compression fittings have metal ferrules inside. Ferrules are made of stainless steel SS316L (other materials and sizes available upon request). Single or double ferrules are used depending on the inner diameter. By screwing the cap down, the ferrule is permanently pressed on the sensing element. This connection is pressure resistant, which is also reason for the alias name; compression fitting. Available compression fittings:

Product number	Type - thread - inner diameter
875823	Compression fitting G½ - 6 mm
1001171	Compression fitting G½ - 12 mm
914413	Compression fitting G½ - 15 mm
1010922	Compression fitting G¼ - 1.5 mm
911898	Compression fitting G¼ - 3 mm
911897	Compression fitting G¼ - 4.5 mm
920701	Compression fitting G¼ - 6 mm
920587	Compression fitting G⅛ - 1.5 mm
919178	Compression fitting G⅛ - 3 mm
1090957	Compression fitting G⅛ - 1 mm
1062720	Compression fitting M8x1 - 1.5 mm
911908	Compression fitting M8x1 - 3 mm
1040461	Compression fitting M18x1.5 - 6 mm
914237	Compression fitting NPT¼ - 3 mm
1066586	Compression fitting NPT¼ - 6 mm
1001559	Compression fitting NPT⅛ - 3 mm
1066584	Compression fitting NPT⅛ - 6 mm
