EPIC® SENSORS

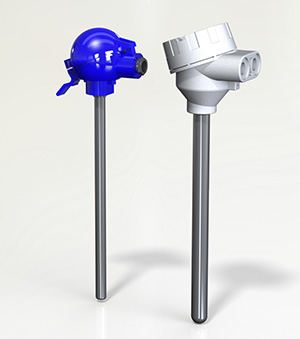

Sensors and thermowells with special coating

We can manufacture all metal surface sensors or thermowells also with special coatings. The coating materials used are:

FEP - a fluoropolymer, good for low temperature, exhaust gases and various acids, resistant to sunlight
PFA - very similar to FEP, slightly better thermal stability and higher temperature resistance than FEP
METCO - hardmetal coating especially for applications where sensors are exposed to grinding like crude oil pipes (sand/stones), rock wool blasting, etc
HALAR - for anticorrosion applications
DIAMALLOY - corrosion protection with hard surface
other materials on request
temperature range -200...+1200 °C depending on the coating material.

The most common sensor types to be coated are:

Check out all our thermo wells!

	Download	Format
	1 Threaded temperature sensor without neck pipe - T-B-ØK / W-B-ØK	.pdf
	2 Threaded temperature sensor with neck pipe and thermowell - T-B-Ø / W-B-Ø	.pdf
	3 Flanged temperature sensor - T-F / W-F	.pdf
	8 Immersible temperature sensor - T-A-Ø, T-A-Ø-U / W-A-Ø, W-A-Ø-U	.pdf
	Sensors and thermo wells with special coating	.pdf
