Transmitters for sensor head

Transmitters for sensor head installation

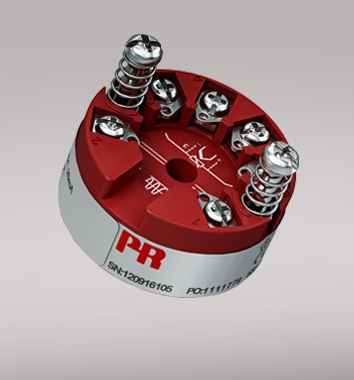

PR-5337a
PR electronics PR 5300 and PR 5400 are temperature transmitters product series developed for sensor head mounting. The range includes 2-wire transmitters with traditional mA output signal, with HART® frequency signal and with digital signals of fieldbuses. Detailed product data and safety notes for each type by clicking the type number. 5300 series, 2-wire transmitters:
  • 5331A Programmable 2-wire temperature transmitter for RTD and TC sensors
  • 5332A Programmable 2-wire temperature transmitter for RTD sensors, non-isolated
  • 5333A Programmable 2-wire temperature transmitter for RTD sensors
  • 5334A Programmable 2-wire temperature transmitter for TC sensors
  • 5335A Programmable 2-wire temperature transmitter with mA and HART®5 output (more details below)
  • 5337A Programmable 2-wire temperature transmitter with mA and HART®7/HART®5 output (more details below)
  • 5350A Profibus®PA / FOUNDATION Fieldbus™ fieldbus transmitter (more details below)
  • 53xxB or 53xxD Ex transmitters, please see: Ex transmitters for sensor head »

5400 series, 2-wire transmitters:  5800 series, compact 2-wire transmitters:
  • 5802 Programmable 2-wire temperature transmitter for 2/3-wire RTD sensors, for M18 barrel housing.
Check out all our temperature transmitters!

2-wire transmitters with HART® connection

PR 5335

is a small, 1 channel transmitter for sensor head installation, input can be: RTD, TC, linear resistance or mV. HART® communication with HART®5 protocol.
  • 5335A - standard (safe area)
  • 5335D - ATEX, FM and IECEx certified Ex-version.

PR 5337

is a small, 1 channel transmitter for sensor head installation, input can be: RTD, TC, linear resistance or mV. HART® communication by user selectable HART®5 or HART®7 protocols. When using PReset software, version 6.04 or later should be used.

PR 5437

is a small transmitter with single or true dual inputs with sensor redundancy and drift detection for sensor head installation, input can be: RTD, TC, potentiometer, linear resistance or bipolar mV. HART® communication with HART®7 protocol. Full assessment to IEC61508:2010 for use in SIL 2/3 applications. When using PReset software, version 8.02.1006 or later should be used.
HART® files: HART® bus files - DD & AMS, EDD and DTM - can be downloaded from page: prelectronics.com > Download > Software > Files for HART and bus communication

Profibus® PA process bus connection

PRetop 5350

is a small, 1 channel, FISCO-certified digital transmitter for sensor head installation. Input can be RTD or TC sensor.

  • 5350A - standard version (for safe area)
  • 5350B - ATEX, FM, CSA, IECEx, EAC-Ex, NEPSI and INMETRO certified Ex-version.

Profibus® files - GSD and PDM - can be downloaded from page:
www.prelectronics.com > Download > Software > Files for bus communication

You can use the same transmitter also in FOUNDATION™ Fieldbus H1 process bus. Transmitter detects automatically which bus it is connected to (patented AutoSwitch function), and adapts its features according to that bus.

FOUNDATION™ Fieldbus H1 process bus connection

PRetop 5350

is a small, 1 channel, FISCO-certified digital transmitter for sensor head installation. Input can be: RTD or TC sensor.

  • 5350A - standard version (for safe area)
  • 5350B - ATEX, FM, CSA, IECEx, EAC-Ex, NEPSI and INMETRO certified Ex-version.

LAS function block: transmitter can be programmed to take over the bus segment communication control if connection to master is lost.

PID function block: process control can be decentralized down to transmitter level.

H1 bus files - DD and DTM - can be downloaded from page: prelectronics.com > Download > Software > Files for bus communication

You can use the same transmitter also in Profibus® PA process bus. Transmitter detects automatically which bus it is connected to (patented AutoSwitch function), and adapts its features according to that bus.
