Transmitters for rail installation

Transmitters for DIN rail or Power Rail installation

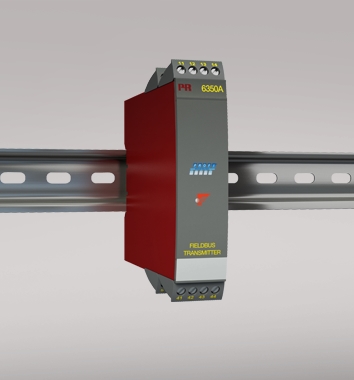

PR-6350a
Transmitters for rail installation are available in several product series. The manufacturer of these transmitters is PR electronics. Detailed product data and safety notes for each type are available by clicking the type number below. 3000 series, 6 mm wide, for DIN rail or Power Rail:
  • 3101 Temperature transmitter, TC-J and TC-K
  • 3102 Temperature transmitter, Pt100
  • 3111 Temperature transmitter, galvanically isolated, TC-J and TC-K, for Power Rail
  • 3112 Temperature transmitter, galvanically isolated, Pt100, for Power Rail
  • 3113 Temperature transmitter, galvanically isolated, Pt100, TC-J and TC-K, HART®7, for Power Rail
  • 3114 Universal converter
  • 3331 2-wire temperature transmitter, galvanically isolated, Pt100, TC-J and TC-K
  • 3333 2-wire temperature transmitter, Pt100
  • 3337 2-wire temperature transmitter, galvanically isolated, Pt100, TC-J and TC-K, HART®7
  • 940x Power Rail components and accessories
  • 9410 Power Rail power contol unit.
4000 series, universal, fixed input ranges, for DIN rail installation:
  • 4114 Universal transmitter
  • 4116 Universal transmitter
  • 4131 Universal trip amplifier (no mA output)
  • 4510 Display/programming front for 4000 or 9000 series modules (replaces type 4501)
  • 4511 Communication enabler (Modbus), connects 4000 or 9000 series modules to Modbus RTU bus (more details below)
  • 4512 Communication enabler (Bluetooth), wireless connection of 4000 or 9000 series modules to PPS application (more details below)
  • 4590 ConfigMate-adapter, to read memory of 45xx Display/programming unit with PC
5100 series, universal, freely programmable, for DIN rail installation:6300 series, 2-wire transmitters, for DIN rail installation:
  • 6331A Programmable 2-wire temperature transmitter RTD and TC
  • 6333A Programmable 2-wire temperature transmitter RTD
  • 6334A Programmable 2-wire temperature transmitter TC
  • 6335A Programmable 2-wire temperature transmitter HART®5 (more details below)
  • 6337A Programmable 2-wire temperature transmitter HART®7/HART®5 (more details below)
  • 6350A Profibus®PA/FOUNDATION Fieldbus™-transmitter (more details below)
  • 63xxB or 63xxD Ex transmitters, please see: Ex transmitters for rail installation »
6400 series, 2-wire transmitters, for DIN rail installation:9100 series, for DIN rail or Power Rail installation: Check out all our temperature transmitters!

2-wire transmitters with HART® connection

PR 6335

is an 1 or 2 channel transmitter for DIN rail installation, input can be: RTD, TC, linear resistance or mV. HART® communication with HART®5 protocol.
  • 6335A - standard version for safe area
  • 6335D - ATEX, FM and IECEx certified Ex version.

PR 6337

is an 1 or 2 channel transmitter for DIN rail installation, input can be: RTD, TC, linear resistance or mV. HART® communication by user selectable HART®5 or HART®7 protocols. When using PReset software, version 6.04 or later should be used.

PR 6437

is an 1 channel / 2 input / 2 channel transmitter for DIN rail installation, input can be: RTD, TC, linear resistance, potentiometer or mV. HART® communication by HART®7 protocol (or HART®5). When using PReset software, version 9.01.1001 or later should be used.

HART® files:

HART® bus files - DD & AMS, EDD and DTM - can be downloaded from page:prelectronics.com > Download > Software > Files for bus communication

Profibus® PA process bus connection

PRetrans 6350

1 or 2 channel, FISCO-certified digital transmitter for DIN rail installation. Input can be RTD or TC sensor or a mA signal, which makes this device also a mA/bus converter.

  • 6350A - standard version for safe area
  • 6350B - ATEX, FM, CSA, IECEx and EAC-Ex certified Ex version.

Profibus® files - GSD and PDM - can be downloaded from page:
www.prelectronics.com > Download > Software > Files for bus communication

You can use the same transmitter also in FOUNDATION™ Fieldbus H1 process bus. Transmitter detects automatically which bus it is connected to (patented AutoSwitch function), and adapts its features according to that bus.

FOUNDATION™ Fieldbus H1 process bus connection

PRetrans 6350

1 or 2 channel, FISCO-certified digital transmitter for DIN rail installation. Input can be RTD or TC sensor or a mA signal, which makes this device also a mA/bus converter.

  • 6350A - standard version for safe area
  • 6350B - ATEX, FM, CSA, IECEx and EAC-Ex certified Ex version.

LAS function block: transmitter can be programmed to take over the bus segment communication control if connection to master is lost.

PID function block: process control can be decentralized down to transmitter level.

H1 bus files - DD and DTM - can be downloaded from page: prelectronics.com > Download > Software > Files for bus communication

You can use the same transmitter also in Profibus® PA process bus. Transmitter detects automatically which bus it is connected to (patented AutoSwitch function), and adapts its features according to that bus.

Modbus® RTU and Modbus® TCP/IP

PR4000 and PR9000 series

modules can be connected to Modbus RTU field bus with 4511-Modbus-communication-enabler. 4511 unit is attached on modules of 4000 or 9000 series, and Modbus RTU bus communication (RS485) is connected to 4511 unit with a RJ45 connector. RJ45 connectors and RJ45 wire harnesses are available as accessories.

Modbus RTU can be further connected to Modbus TCP/IP or the wireless Ethernet or Profinet networks with applicable gateway devices.

Examples of Modbus solutions below:

pr-4511-modbusrtu

4512 Bluetooth® communication enabler for 4000 and 9000 series

Enable Bluetooth communication and data logging on all your PR 4000 and PR 9000 units. Just mount the PR 4512 on the front of the device from PR electronics and install the PPS app on your smart device (iOS  and Android). This enables live monitoring of your process data, data- and event logging and easy programming of your device.

  • Bluetooth communication between the PR 4000 and 9000 devices and iOS/Android devices
  • Live monitoring of process values and diagnostics on compatible smart devices or directly on the PR 4512
  • Advanced data logging and event logging using the built-in real-time clock
  • Program devices via Bluetooth using an iOS/Android device running the free PPS app (PR Process Supervisor).
  • Use PPS data for preventive maintenance.
  • All logged data can be exported in .csv format, for advanced data analysis off-site.
  • On-site analysis of real-time process data on an iOS/Android compatible device.
  • Off-site analysis of historic process data on a PC using PReset.

Read more about 4512 »

4512 Product web page »
