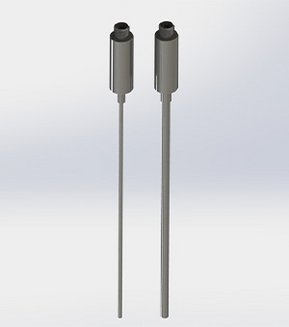

27 Compact resistance temperature sensor with transmitter



Compact resistance temperature sensor with transmitter. This EPIC® SENSORS temperature sensor is specially designed for constricted spaces.

  • temperature range -60...+450 °C, temporarily +550 °C
  • temperature range for transmitter -40...+85 °C
  • integrated mA transmitter
  • output current signal 4...20 mA
  • miniature transmitter
  • programmable transmitter configurations
  • programmable sensor fault indication
  • linear temperature measurement
  • RTD sensor
  • Pt100, accuracy class A as standard delivery
  • 4-pin M12 plug
  • bendable MI cable structured sensor element
  • material AISI316/AISI 316L
  • vibration proof
  • durable steel enclosure
  • 3D step model available on request.

Typical applications
  • temperature measurement
  • requirements for minimal space usage.
