Ex transmitters for rail installation

Ex transmitters for DIN rail or Power Rail installation

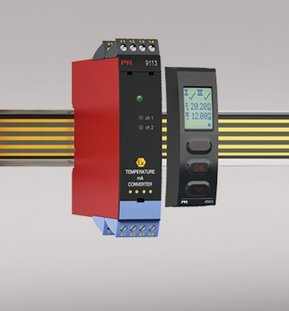

PR-9113B
Ex transmitters for rail installation in control cabinet or connection box are presented in the selection table below. The applicable rail types are indicated for each product type, the rail options are:
  • DIN = transmitter can be installed on traditional 35 mm DIN rail, in these cases supply voltage is wired to transmitters screw terminals
  • Power Rail = these transmitters have extra contacts for connecting to supply voltage transporting 9400 Power Rail. Power Rail performs as installation and as supply rail.
The manufacturer of these transmitters is PR electronics. Detailed product data and safety notes for each type are available by clicking the type number.
TypeEx marking, designationInput OutputRail type
3101Ex II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
Temperature transmitter		TC-J, TC-KmA, VDIN
3102Ex II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
Temperature transmitter		Pt100mA, VDIN
3111Ex II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
Temperature transmitter		TC-J, TC-KmA, VPower Rail or DIN
3111NEx II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
Temperature transmitter		TC-J, TC-KmA, VDIN
3112Ex II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
Temperature transmitter		Pt100mA, VPower Rail or DIN
3112NEx II 3G Ex nA IIC T4 Gc
Temperature transmitter		Pt100mA, VDIN
3113Ex II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
Temperature transmitter		Pt100, TC-J, TC-KmA, HART®7Power Rail or DIN
3113NEx II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
Temperature transmitter		Pt100, TC-J, TC-KmA, HART®7DIN
3114Ex II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
Universal converter		RTD, TC, pot., V, mA,
2-wire transmitter 		mA, VPower Rail or DIN
3114NEx II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
Universal converter		RTD, TC, pot., V, mA,
2-wire transmitter		mA, VDIN
3331Ex II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
2-wire temperature transmitter 		Pt100, TC-J, TC-K2-wire output DIN
3333Ex II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
2-wire temperature transmitter		Pt1002-wire output DIN
3337Ex II 3G Ex ec IIC T4 Gc
Ex II 3G Ex ec nC IIC T4 Gc
2-wire temperature transmitter		Pt100, TC-J, TC-KHART®7,
2-wire output 		DIN
4510Ex II 3G Ex ec IIC T5
Communication enabler
for 9000 series		In Ex applications the 4510 has to be used in Ex zone 2 / Div. 2.
4511Ex II 3G Ex nA IIC T5 Gc
*Modbus communication enabler
for 9000 series		In Ex applications the 4511 has to be used in Ex zone 2 / Div. 2.
4512Ex II 3G Ex nA IIC T5 Gc
Bluetooth communication enabler
and logger for 9000 series		In Ex applications the 4512 has to be used in Ex zone 2 / Div. 2.
5114B**ATEX-NOTE!
Ex II (1)GD [EEx ia] IIC
Universal transmitter		RTD, TC, mV, R, pot, mA, V,
2-wire transmitter 		mA, V,
2-wire output 		DIN
5115B**ATEX-NOTE!
Ex II (1)GD [EEx ia] IIC
Universal signal calculator		RTD, TC, mV, R, pot, mA, V,
2-wire transmitter 		mA, V,
2-wire output 		DIN
5116B Ex II (1)G [Ex ia Ga] IIC/IIB/IIA
Ex II (1)D [Ex ia Da] IIC
Universal transmitter		RTD, TC, mV, R, pot, mA, V,
2-wire transmitter 		mA, V,
2-wire output,
2xrelay 		DIN
5131B**ATEX-NOTE!
Ex II (1)GD [EEx ia] IIC
Programmable 2-wire transmitter		Pt100, Ni100, TC, mV, R, mA, V 2-wire output DIN
6331AEx II 3G Ex nA [ic] IIC T6..T4 Gc
Ex II 3G Ex ic IIC T6..T4 Gc
Ex II 3D Ex ic IIIC Dc
Programmable 2-wire temperature transmitter		RTD, TC, mV, R 2-wire output DIN
6331BEx II 1G Ex ia IIC T6..T4 Ga
Ex II 1D Ex ia IIIC Da
Ex I M1 Ex ia I Ma
Programmable 2-wire temperature transmitter		RTD, TC, mV, R 2-wire output DIN
6333AEx II 3G Ex nA [ic] IIC T6..T4 Gc
Ex II 3G Ex ic IIC T6..T4 Gc
Ex II 3D Ex ic IIIC Dc
Programmable 2-wire temperature transmitter		RTD, R 2-wire output DIN
6333BEx II 1G Ex ia IIC T6..T4 Ga
Ex II 1D Ex ia IIIC Da
Ex I M1 Ex ia I Ma
Programmable 2-wire temperature transmitter		RTD, R 2-wire output DIN
6334AEx II 3G Ex nA [ic] IIC T6..T4 Gc
Ex II 3G Ex ic IIC T6..T4 Gc
Ex II 3D Ex ic IIIC Dc
Programmable 2-wire temperature transmitter		TC, mV 2-wire output DIN
6334BEx II 1G Ex ia IIC T6..T4 Ga
Ex II 1D Ex ia IIIC Da
Ex I M1 Ex ia I Ma
Programmable 2-wire temperature transmitter		TC, mV 2-wire output DIN
6335AEx II 3G Ex nA [ic] IIC T6..T4 Gc
Ex II 3G Ex ic IIC T6..T4 Gc
Ex II 3D Ex ic IIIC Dc
Programmable 2-wire temperature transmitter		RTD, TC, mV, R HART®5,
2-wire output 		DIN
6335DEx II 1G Ex ia IIC T6..T4 Ga
Ex II 1D Ex ia IIIC Da
Ex I M1 Ex ia I Ma
Programmable 2-wire temperature transmitter		RTD, TC, mV, R HART®5,
2-wire output 		DIN
6337AEx II 3G Ex nA [ic] IIC T6..T4 Gc
Ex II 3G Ex ic IIC T6..T4 Gc
Ex II 3D Ex ic IIIC Dc
Programmable 2-wire temperature transmitter		RTD, TC, mV, R HART®7 or HART®5, 2-wire output DIN
6337DEx II 1G Ex ia IIC T6..T4 Ga
Ex II 1D Ex ia IIIC Da
Ex I M1 Ex ia I Ma
Programmable 2-wire temperature transmitter		RTD, TC, mV, R HART®7 or HART®5, 2-wire output DIN
6350A Ex II 3G Ex nA[nL] IIC T4..T6 or
Ex II 3G Ex nL IIC T4..T6 or
Ex II 3G Ex nA[ic] IIC T4..T6 or
Ex II 3G Ex ic IIC T4..T6
Digital temperature transmitter 		RTD, TC, mA, mV, R, pot Profibus® PA,
FOUNDATION™ Fieldbus H1 		DIN
6350BEx II 1G Ex ia IIC T4..T6 or
Ex II 2(1)G Ex ib [ia] IIC T4..T6 or
Ex II 1D Ex iaD
Digital temperature transmitter 		RTD, TC, mA, mV, R, pot Profibus® PA,
FOUNDATION™ Fieldbus H1 		DIN
6437AEx II 3 G Ex nA IIC T6..T4 Gc
Ex II 3 G Ex ec IIC T6..T4 Gc
Ex II 3 G Ex ic IIC T6..T4 Gc
Ex II 3 D Ex ic IIIC Dc
Programmable 2-wire temperature transmitter		1× or 2×
RTD, TC, mV, R, pot		HART®7,
2-wire output		DIN
6437DEx II 1G Ex ia IIC T6..T4 Ga
Ex II 2(1)G Ex ib [ia Ga] IIC T6...T4 Gb
Ex II 1D Ex ia IIIC Da
Ex I M1 Ex ia I Ma
Programmable 2-wire temperature transmitter		1× or 2×
RTD, TC, mV, R, pot		HART®7,
2-wire output		DIN
9113AEx II 3G Ex nA nC IIC T4 Gc
Universal converter		1× or 2×
RTD, TC, mA		1× or 2×mA,
2-wire output,
1×status relay NC,
Modbus*		Power Rail or DIN
9113BEx II (1)G [Ex ia Ga] IIC/IIB/IIA
Ex II (1)D [Ex ia Da] IIIC
Ex I (M1) [Ex ia Ma] I
Ex II 3G Ex nA nC IIC T4 Gc
Universal converter		1× or 2×
RTD, TC, mA 		1× or 2×mA,
2-wire output,
1×status relay NC,
Modbus*		Power Rail or DIN
9116AEx II 3G Ex nA nC IIC T4 Gc
Universal converter		RTD, TC, R, pot, V, mA,
2-wire transmitter		mA, 2-wire output,
1×relay NO,
1×status relay NC,
Modbus*		Power Rail or DIN
9116BEx II (1)G [Ex ia Ga] IIC/IIB/IIA
Ex II (1)D [Ex ia Da] IIIC
Ex I (M1) [Ex ia Ma] I
Ex II 3G Ex nA nC IIC T4 Gc
Universal converter		RTD, TC, R, pot, V, mA,
2-wire transmitter 		mA, 2-wire output,
1×relay NO,
1×status relay NC,
Modbus*		Power Rail or DIN
9400Power Rail
- supply rail profiles high and low
and their installation accessories:		9400_1 - rail profile height 15 mm
9400_2 - rail profile height 7,5 mm
9402 - end covers for Power Rail (accessory)
9404 - module stop for Power Rail
9410Ex II 3G Ex ec nC IIC T4 Gc
Power control unit		Power control unit for Power Rail
9421Ex II 3G Ex nA nC IIC T3...T4 Gc
Ex power supply		Ex power supply (for Power Rail)
**ATEX-NOTE! Indicated versions are not suitable for new installations requiring certifications to the latest ATEX standards - see ATEX certificate on manufacturer's product page for details. For further information on Ex markings, please download the poster Guide to Hazardous Locations.

2-wire transmitters with HART® connection

PR 6335

is an 1 or 2 channel transmitter for DIN rail installation, input can be: RTD, TC, linear resistance or mV. HART® communication with HART®5 protocol.
  • 6335A - standard version for safe area or Ex zones 2 or 22
  • 6335D - ATEX, FM and IECEx certified for Ex zones 0, 1, 2, 20, 21, 22 or M1.

PR 6337

is an 1 or 2 channel transmitter for DIN rail installation, input can be: RTD, TC, linear resistance or mV. HART® communication by user selectable HART®5 or HART®7 protocols. When using PReset software, version 6.04 or later should be used.
  • 6337A - standard version for safe area or Ex zones 2 or 22
  • 6337D - ATEX, FM, IECEx and EAC-Ex certified for Ex zones 0, 1, 2, 20, 21, 22 or M1.
  • HART certificate: HART® Registered PR 6337 »

PR 6437

is an 1 channel / 2 input / 2 channel transmitter for DIN rail installation, input can be: RTD, TC, linear resistance, potentiometer or mV. HART® communication by HART®7 protocol. When using PReset software, version 9.01.1001 or later should be used.

HART® files:

HART® bus files - DD & AMS, EDD and DTM - can be downloaded from page:prelectronics.com > Download > Software > Files for bus communication

Profibus® PA process bus connection

PRetrans 6350

1 or 2 channel, FISCO-certified digital transmitter for DIN rail installation. Input can be RTD or TC sensor or a mA signal, which makes this device also a mA/bus converter!

  • 6350A - standard version for safe area or Ex zone 2
  • 6350B - ATEX, FM, CSA, IECEx and EAC-Ex certified for Ex zones 0, 1, 2, 20, 21 or 22.

Profibus® files - GSD and PDM - can be downloaded from page:
www.prelectronics.com > Download > Software > Files for bus communication

You can use the same transmitter also in FOUNDATION™ Fieldbus H1 process bus. Transmitter detects automatically which bus it is connected to (patented AutoSwitch function), and adapts its features according to that bus.

FOUNDATION™ Fieldbus H1 process bus connection

PRetrans 6350

is an 1 or 2 channel, FISCO-certified digital transmitter for DIN rail installation. Input can be RTD or TC sensor or a mA signal, which makes this device also a mA/bus converter!

  • 6350A - standard version for safe area or Ex zone 2
  • 6350B - ATEX, FM, CSA, IECEx and EAC-Ex certified for Ex zones 0, 1, 2, 20, 21 or 22.

LAS function block: transmitter can be programmed to take over the bus segment communication control if connection to master is lost.

PID function block: process control can be decentralized down to transmitter level.

H1 bus files - DD and DTM - can be downloaded from page: prelectronics.com > Download > Software > Files for bus communication

You can use the same transmitter also in Profibus® PA process bus. Transmitter detects automatically which bus it is connected to (patented AutoSwitch function), and adapts its features according to that bus.

Modbus® RTU and Modbus® TCP/IP

PR9000 series

modules in Ex zone 2 can be connected to Modbus RTU field bus with 4511-Modbus-communication-enabler. 4511 unit is attached on a 9000 series module and Modbus RTU bus communication (RS485) is connected to 4511 unit with a RJ45 connector. RJ45 connectors and wire harness units are available as accessories.

Modbus RTU can be further connected to Modbus TCP/IP or wireless Ethernet or Profinet networks with applicable gateway devices.

Examples of 9000 series Modbus solutions below:

pr-4511-modbusrtu

4512 Bluetooth® communication enabler for 4000 and 9000 series

Enable Bluetooth communication and data logging on all your PR 4000 and PR 9000 units. Just mount the PR 4512 on the front of the device from PR electronics and install the PPS app on your smart device (iOS  and Android). This enables live monitoring of your process data, data- and event logging and easy programming of your device.Note! In Ex applications 4512 mounting in Zone 2 / Div. 2.

  • ATEX- Ex II 3 G Ex nA IIC T5 G
  • IECEx - Ex nA IIC T5 Gc
  • FM, US - CL I, Div 2, Gp A, B, C, D T5; CL I, Zn 2, Gp IIC T5
  • FM, CA - CL I, Div 2, Gp A, B, C, D T5

Advantages of 4512

  • Bluetooth communication between the PR 4000 and 9000 devices and iOS/Android devices
  • Live monitoring of process values and diagnostics on compatible smart devices or directly on the PR 4512
  • Advanced data logging and event logging using the built-in real-time clock
  • Program devices via Bluetooth using an iOS/Android device running the free PPS app (PR Process Supervisor).
  • Use PPS data for preventive maintenance.
  • All logged data can be exported in .csv format, for advanced data analysis off-site.
  • On-site analysis of real-time process data on an iOS/Android compatible device.
  • Off-site analysis of historic process data on a PC using PReset.

Read more about 4512 »

4512 Product web page »
