Welded thermowells, root and threaded sleeves

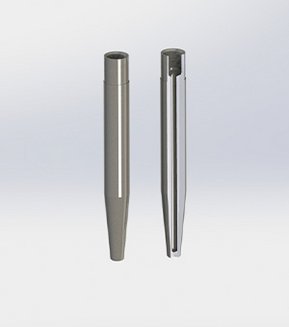

EPIC® SENSORS welded thermowells, root and threaded sleeves
![EPIC-SENSORS-welded-thermowell-2](https://t3.lappcdn.com/fileadmin/_processed_/f/e/csm_EPIC-SENSORS-welded-thermowell-2_44c30b6686.jpg)
Features
- according to DIN 43772 form 2F
- fitted to application with weld
- typically used with threaded temperature sensor
- threaded temperature sensor has separate cooling neck and connection head
- threaded temperature sensor has mineral insulated temperature sensor element inside, which will be sleeved with welded thermowell
- used to protect MI cable sturctured sensor element
- in some cases welded thermowells are referred as
- weld-in thermowells, product is the same
- 3D step models available on request.
- energy and power plant technology
- process industry
- chemical industry
- machinery and vessel construction
- manufacturing industry.
Welded wells
Welded wells (without cooling neck and connection head) are available according to this table:
Other sizes and materials are quoted upon request.
Product number | Type | For sensing element diameter/length [mm] | Inner thread | L [mm] | La [mm] | Da [mm] | Lb [mm] | Db [mm] |
---|---|---|---|---|---|---|---|---|
1025318 | E-6/30 | 3/120 | ||||||
1025319 | E-6/55 | 3/145 | ||||||
1090956 | E-6/115 | 3/205 | ||||||
911966 | D1-L | 6/315 | M18×1,5 | 140 | 50 | 24h7 | 65 | 12,5 |
911144 | D4-L | 6/375 | M18×1,5 | 200 | 110 | 24h7 | 65 | 12,5 |
911968 | D5-L | 6/435 | M18×1,5 | 260 | 110 | 24h7 | 125 | 12,5 |
911907 | D1-M | 6/315 | M18×1,5 | 140 | 50 | 24h7 | 65 | 12,5 |
911165 | D4-M | 6/375 | M18×1,5 | 200 | 110 | 24h7 | 65 | 12,5 |
911457 | D5-M | 6/435 | M18×1,5 | 260 | 110 | 24h7 | 125 | 12,5 |
911890 | D1-K | 6/315 | M18×1,5 | 140 | 50 | 24h7 | 65 | 12,5 |
911161 | D4-K | 6/375 | M18×1,5 | 200 | 110 | 24h7 | 65 | 12,5 |
911967 | D5-K | 6/435 | M18×1,5 | 260 | 110 | 24h7 | 125 | 12,5 |
911906 | D1-O | 6/315 | M18×1,5 | 140 | 50 | 24h7 | 65 | 12,5 |
911145 | D4-O | 6/375 | M18×1,5 | 200 | 110 | 24h7 | 65 | 12,5 |
911969 | D5-O | 6/435 | M18×1,5 | 260 | 110 | 24h7 | 125 | 12,5 |
912066 | D1S-L | 3/315 | M14×1,5 | 140 | 50 | 18h7 | 65 | 9 |
911164 | D4S-L | 3/375 | M14×1,5 | 200 | 110 | 18h7 | 65 | 9 |
912067 | D1S-M | 3/315 | M14×1,5 | 140 | 50 | 18h7 | 65 | 9 |
911166 | D4S-M | 3/375 | M14×1,5 | 200 | 110 | 18h7 | 65 | 9 |
912065 | D1S-K | 3/315 | M14×1,5 | 140 | 50 | 18h7 | 65 | 9 |
911162 | D4S-K | 3/375 | M14×1,5 | 200 | 110 | 18h7 | 65 | 9 |
912068 | D1S-O | 3/315 | M14×1,5 | 140 | 50 | 18h7 | 65 | 9 |
911163 | D4S-O | 3/375 | M14×1,5 | 200 | 110 | 18h7 | 65 | 9 |
![welded-wells-dimensions](https://t3.lappcdn.com/typo3conf/ext/setu_bootstrap/Resources/Public/Images/blank.gif)
Cooling neck and connection head for welded thermowells
If the process already has a welded thermowell, a suitable cooling neck and connection head can be purchased as a separate component. Cooling necks have outer threads which can be applied to D-wells:
A cooling neck, and connection head equipped with a sensing element - without a welded thermowell - is presented on datasheet 5.
A cooling neck, and connection head equipped with a sensing element and with a welded well is presented on datasheet 4.
- M14×1,5 for D1S and D4S
- M18×1,5 for D1, D4 and D5.
Product nunber | Type | For well types |
---|---|---|
915312 | H-12-D/H-165/M18X1,5 | D1, D4 and D5 |
915313 | H-12-D/H-165/M14X1,5 | D1S and D4S |
A cooling neck, and connection head equipped with a sensing element and with a welded well is presented on datasheet 4.
![h-12-d](https://t3.lappcdn.com/typo3conf/ext/setu_bootstrap/Resources/Public/Images/blank.gif)
Welded root sleeves for welded thermowells
The root sleeve is first welded on the process pipe or container, and then bored to precise inner dimensions. After that the D1S/D4/D4S/D5 type thermowell is welded on the root sleeve. The root sleeve material needs to be the same as the welded thermowell. Welded root sleeves, as components:
Other materials and sizes are quoted upon request. Complete RTD and TC sensors with welded wells (D1...D5) are presented on Datasheet 4.
Product number | Type | For well type |
---|---|---|
1025309 | 18-K | D1S and D4S |
1025312 | 18-L | D1S and D4S |
1025313 | 18-M | D1S and D4S |
918138 | 18-O | D1S and D4S |
912333 | 24-K | D1, D4 and D5 |
912331 | 24-L | D1, D4 and D5 |
912332 | 24-M | D1, D4 and D5 |
912334 | 24-O | D1, D4 and D5 |
![4-installation](https://t3.lappcdn.com/typo3conf/ext/setu_bootstrap/Resources/Public/Images/blank.gif)
![welded-root-sleeves-dim](https://t3.lappcdn.com/typo3conf/ext/setu_bootstrap/Resources/Public/Images/blank.gif)
Welded threaded sleeves
A threaded sleeve is first welded on the process pipe or container, and then the threaded thermowell is installed to the sleeve. As standard, the threaded sleeve material is acid-proof AISI 316L. Welded threaded sleeves available are:
Other materials and sizes are quoted upon request.
Product number | Type and inner thread | Overall length [mm] |
---|---|---|
1025314 | G1/2” | L=30 |
1002689 | G1/2” | L=70 |
1003144 | G1/2” | L=100 |
1028394 | G1” | L=70 |
![sleeves](https://t3.lappcdn.com/typo3conf/ext/setu_bootstrap/Resources/Public/Images/blank.gif)
