EPIC® SENSORS

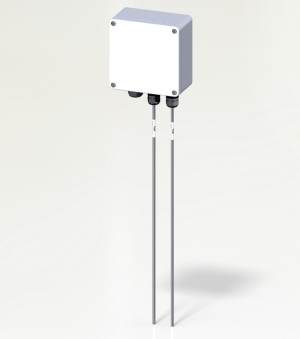

23 Trace heating sensor

EPIC® SENSORS W-M-TRACE or 2x W-M-TRACE

Features

temperature range -60...+450 °C, temporarily +550 °C
temperature range -40...+80 °C for standard delivery enclosure
Pt100 as sensing element
Pt100 accuracy class A as standard delivery
1 or 2 measurement points
replaceable sensor elements
AISI 316L as standard delivery material for the sensor elements, other materials on request
components are available as ATEX compatible Ex e, however subsequent approval of the entity is required
tailored solutions according to customer specific needs
3D step models available on request.

Typical applications
